2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M

2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M

2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M
2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M
CategoriesFilm Blowing Machine
AlbumView larger image
BrandVinot
ModelDYSJ-YT-45
ColorRed
Be applied toMachinery industry
ConditionNew
AutomaticYes
ApplicationFilm
Voltage380V
FOB portningbo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-27
Detail Information

2018 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material Model No.SJ-45M

Detailed Product Description
Screw Diameter:45mmL / D Ratio:30 : 1
Film Thickness:0.01 - 0.10mmFilm Width:100 - 600mm
Heating Power:11kwMax Output:40kg / H
Model No.:SJ-45M Or DYSJ-45MReduced Diameter Of Film:100-600mm
OVERALL SIZE:2.6x1.9x3.5mWeight:1.5T
Power Of Main Motor:11 Kw

High Speed Full Automatic Plastic Mini

Model No.DYSJ - 45M

Film Blowing Machine


2017 Vinot Top Quality High Speed Monolayer Blown Film Machine HDPE or LDPE taked as raw material  Model No.SJ-45M

Feature:



    The machine take the HDPE or LDPE as raw material,through heating,extrusion,blowing,stretch,winder and final be roll thin film.The finished plastic thin is widely used for supermarket bag, garbage bag,various plastic package bag.



Optional Device:  Auto loader

                                  Air shaft

                                  Rotary Die





Advantages:



♦ The mini film blowing machine’s barrel and screw rods are all made of quality alloy steel that have been nitrided and processed by precision machining equipment.

♦ Hence it is sound in hardness, durable in corrosion resistance.

♦ The specially-designed screw is of sound quality In plasticizing, which helps increase the production capacity

♦ It is applied to blowing the plastic films of low density polyethylene (LDPE) or high density polyethylene (HDPE) or linear low density polyethylene(LLDPE).

♦ It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.

♦ Coiling unit adopts torque motor to keep proper tension, winding smoothly, and convenient to change the coil.

♦ The machine body is made of square steel, equipped with frequency converter to control traction motor, friction style winding and elevating, which is suitable for blowing HDPE/LDPE industrial and agriculture film.

♦ It can be used for continuously printing various plastic films, cloths, thin leather and package products etc, one-sided or two-sided printing finished by once-through operation.

♦ 360 degree register sets is accurate and doesn’t affect stretching film, and the color registration can be adjusted freely.



Main Specification:



 MODEL SJ-45M
 SCREW DIAMETER(mm) Φ45
 REDUCED DIAMETER OF FILM 100-600mm
 FILM THICKNESS 0.01-0.10mm
 MAX.EXTRUSION OUTPUT 40kg/hr
 SCREW L/D 30:1
 POWER OF MAIN MOTOR 11KW
 POWER OF TRACTION MOTOR 0.75KW
 HEATER POWER 11KW
 OVERALL SIZE 2.6x1.9x3.5m
 WEIGHT 1.5T

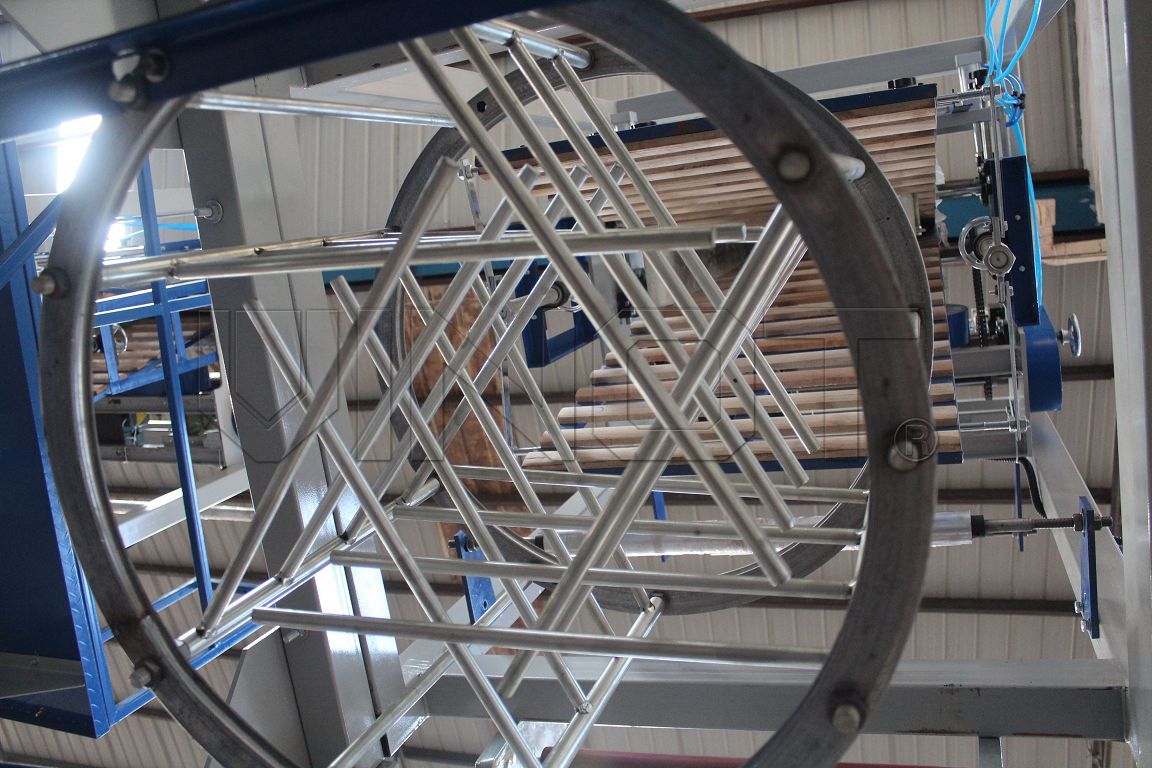

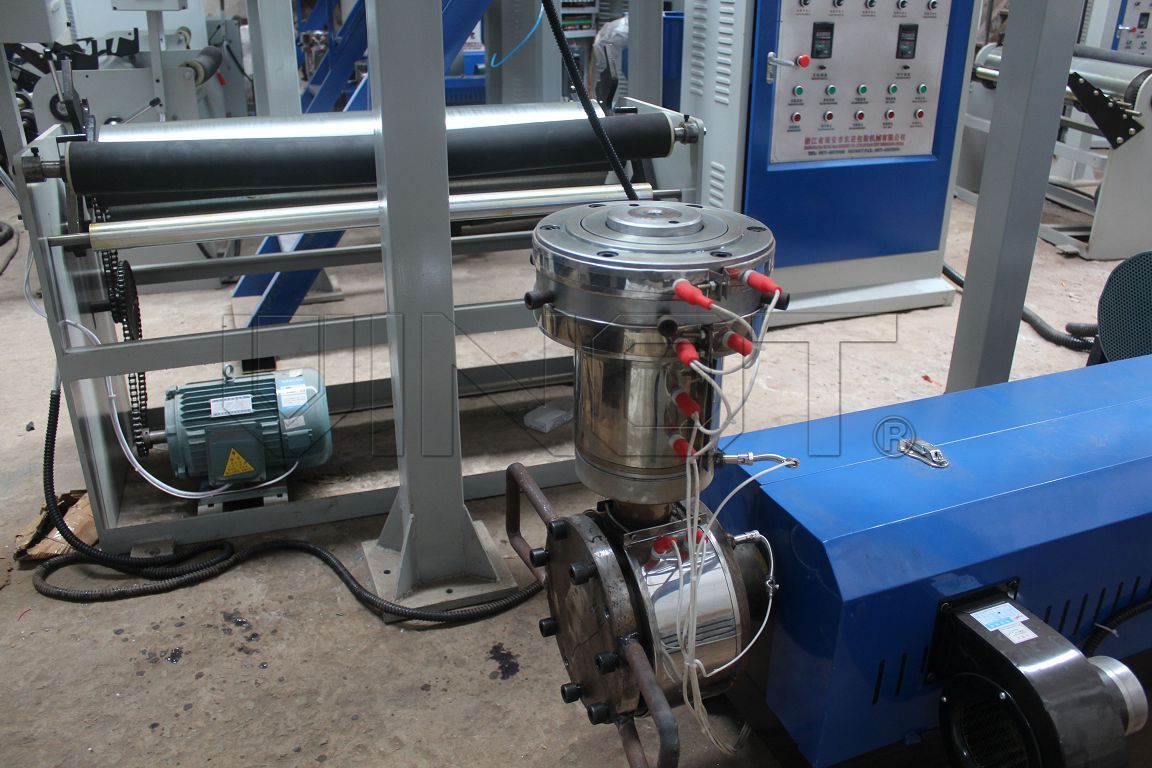

Details Picture :
