China Vinot Best Price PE Air Bubble Film making Machine

China Vinot Best Price PE Air Bubble Film making Machine

China Vinot Best Price PE Air Bubble Film making Machine
China Vinot Best Price PE Air Bubble Film making MachineChina Vinot Best Price PE Air Bubble Film making MachineChina Vinot Best Price PE Air Bubble Film making MachineChina Vinot Best Price PE Air Bubble Film making MachineChina Vinot Best Price PE Air Bubble Film making Machine
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDY-1200/DY-1600/DY-2000
FOB portningbo
Terms of PaymentL/C, Western Union, T/T
Download DOC
Update Time2018-08-17
Detail Information

50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design

Detailed Product Description
MATERIAL:Stainless SteelFilmWIDTH:2000-3000MM
Power:87-130KWOUTPUT:150-220KG/h
WEIGHT:7.5TONSCREW DIAMETER:75/75 DOUBLE
Suitable Material:LLDP LDPE HDPE

Wide In Width Quality PE

Air Bubble Film making Machine 2000mm at Low Price

Model No. DYF-2000

China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200

China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200



Feature:

This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational in structure of the machine.

China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200

PE air bubble blow machine, has good shock absorption, sealability, corrosion resistance, etc. The machine has following features:

1) PE air bubble film (also called as PE air cushion film) produced by this machine is a generally used packing material

2) Good shock absorption, impact resistance, sealability, corrosion resistance, transparency, etc.





Machine layout





China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200





Main Technical Parameter

   MODEL DYF-2000

  ·SUITABLE RAW MATORIAL HDPE LDPE LLDPE

  ·WIDTH OF PRODUCTION 2900

  ·MAIN BUBBLE SPECIFICATION φ6*3.2mm  φ30*10mm

  ·TOTAL INSTALLED POWER 128kw

  ·COVER DIMENSION(M) 8.4*5*3.5

  ·OUTPUT 150-230Kg/h

  ·GROSS WEIGHT 8.5T

  ·EXTRUDER

  ·SCREW DIAMETER(mm) 75/75

  ·SCREW L/D 30:1

  ·SCREW MATERIAL SACM-65/38CRMOLA

  ·CYLINDER MATERIAL SACM-65/38CRMOLA

  ·CYLINDER COOLING 240

  ·DRIVING MOTOR(KW) 22/22kw

  ·TYPE OF DIE

  ·DIE SIZE 2000

  ·TEMPERTURE CONTROL 7

  ·TAKE-UPUNIT

  ·ROLLER WIDTH(mm) 3150

  ·TAKE-UP SPEED(M/min) 10-80

  ·TAKE-UP MOTOR(kw) 2.2

  ·WINDING UNIT

  ·SURFACE FRICTION/CENTER REWINDER

  ·WINDING MOTOR(KW) 2.2

  ·WINDING SPEED(M/min) 10-80

China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200

PP Air Bubble Film Making Machine Features:
The unit extruder, barrel, screw adopt high-quality steel, nitride tight handling and precision machining, with the best hardness and corrosion resistance, a specially designed screw high yield, good plastic.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.



China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200

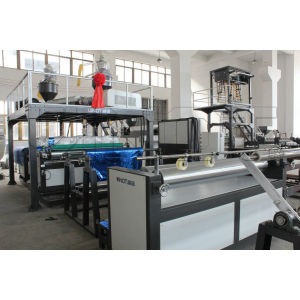

Pictures:

                              China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200            China Vinot Bset Price Wide In Width PE Air Bubble Film making Machine 3000mm 7.5 TON Weight Model No. DYF-2200
