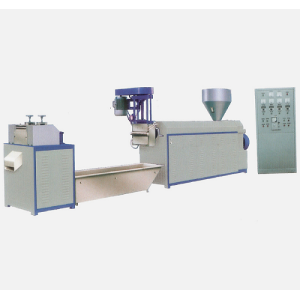

Water-cooling Type Single-stage PP/PE Plastic Recycling Machine

Water-cooling Type Single-stage PP/PE Plastic Recycling Machine

Water-cooling Type Single-stage PP/PE Plastic Recycling Machine
Water-cooling Type Single-stage PP/PE Plastic Recycling MachineWater-cooling Type Single-stage PP/PE Plastic Recycling Machine
CategoriesPlastic Recycle Machine
AlbumView larger image
BrandVinot
ModelSJ-90
FOB portNingbo
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-05-24
Detail Information

Water-cooling Type Single-stage PP/PE Plastic Recycling Machine

Main specification of the production line

  1. Output: 60-70kg/h

  2. Applicable raw material: HDPE/LDPE and PP film materials

  3. Power supply: 380v, 50Hz 3 Phase

  4. Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment

  5. Gear box: Surface heat quenching and tempering /auto. Oil lubricated

  6. Automatic temperature controlling system

  7.The extruder is cooled by blower automatically.

  8. All motors are adjustable in speed.

  9.With blowing dryer

  10. Including water-cooling device made of stainless steel

  11. Including granule cutter


This is a title

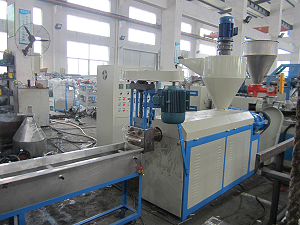

Extrusion Unit

Main motor : 22kw(Inverter control)

Screw Diameter: Φ90mm

Screw ratio:  L/D 22: 1

Barrel cooling: blower x 2

Screw rigidity: ≥HV940

Barrel rigidity: ≥HV940

Nitriding deepness: 0.5-0.7mm

Heating Control: 4 zones

Electrical Heating capacity: 14 KW

Screen changer

Method of filter changing: Driven by motor

Heating control(zone): 1

Electrical heating capacity: 2.5KW



Extrusion Die

Heating Control(zone): 1

Heating Capacity: 3kw

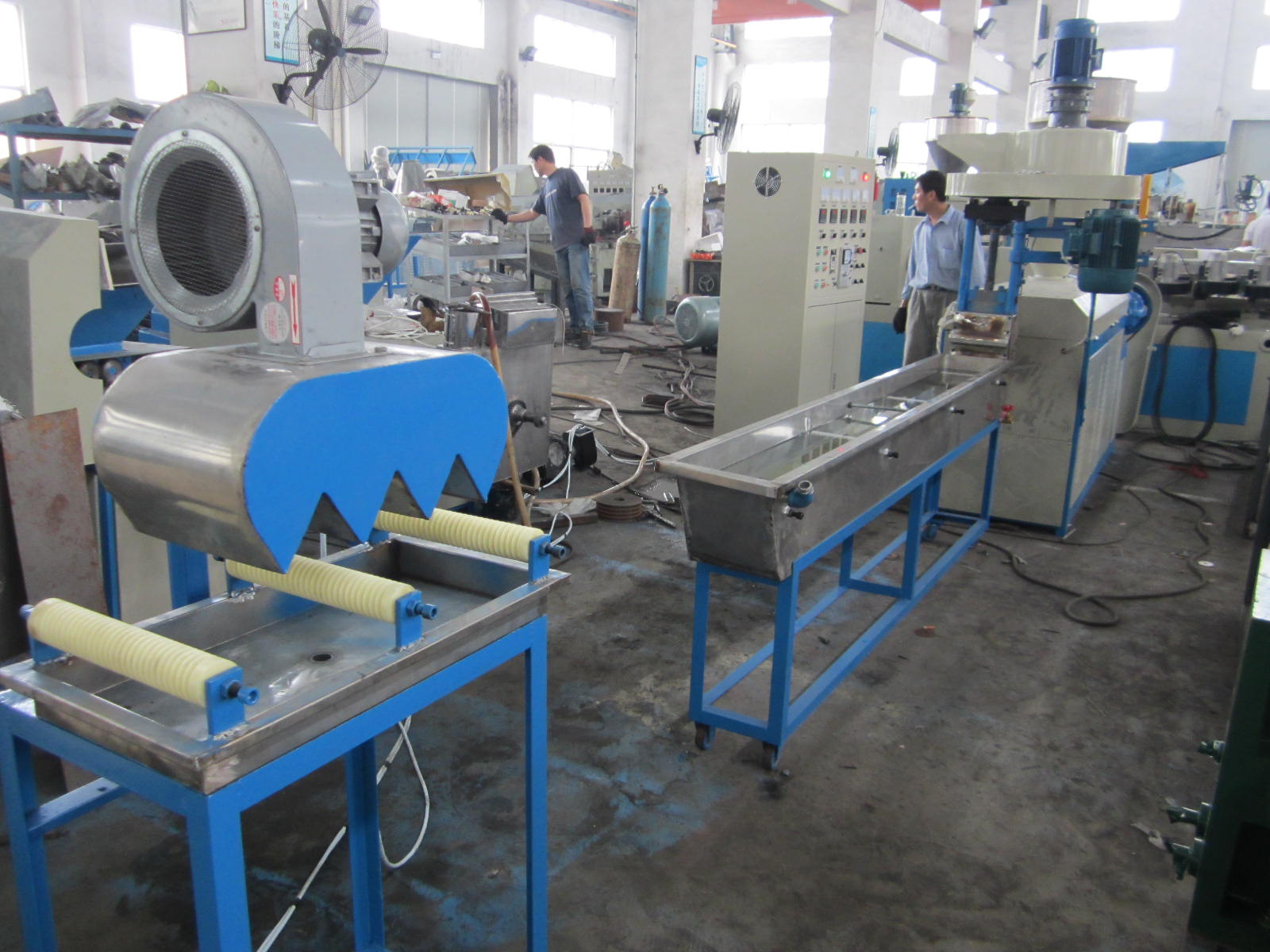

Water Tank

2.5 meters length

Stainless steel

Blowing dryer

Blower motor: 0.75KW

Cutter

Cutter motor: 2.2KW(Inverter control)

Weight

2100KG

Dimension

8200mm(L)*2150mm(W)*1850mm(H)


Remarks:

1). All the above prices are based on USD FOB Wenzhou, China

2). Payment: by T/T & L/C

3). Delivery time: Within 50 days after receiving the deposit.

4). Packaging: With air bubble film outside

5). Engineer service and after sale service: we will send one technician to install the machines in your factory, and train your workers how to operate the machines, but you will be in charge of the technician’s plane ticket, visa, accommodation, food, living and salary or other living expense.

6).We guarantee the quality of the machines for one year, and the after sale service is lifelong.
