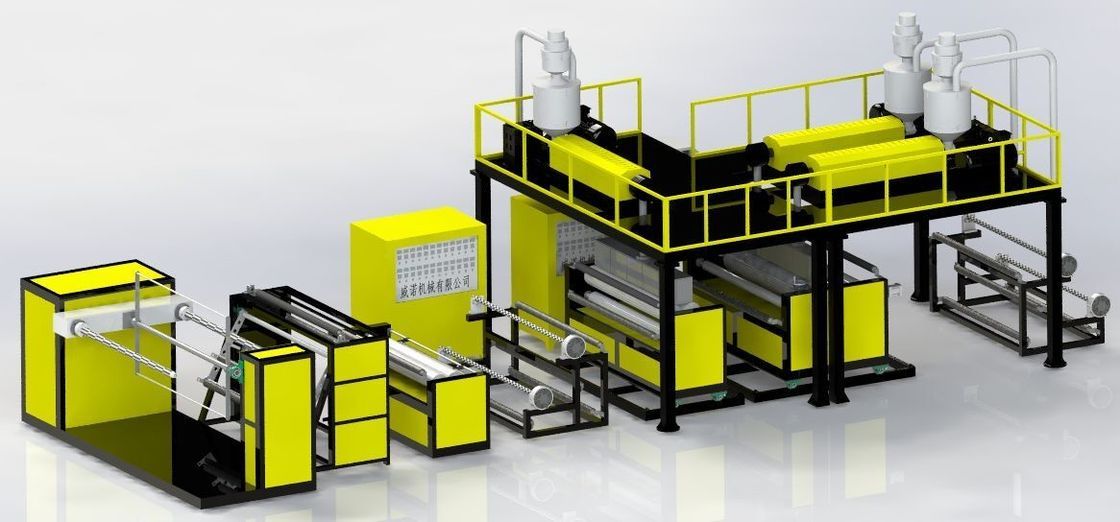

50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design

50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design

50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design
50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDY-1600/DY-1800/DY-2000/DY-2200/DY-2500
FOB portningbo
Terms of PaymentL/C, Western Union, T/T
Download DOC
Update Time2018-05-23
Detail Information

50 - 150kg / H Output Bubble Wrap Manufacturing Machine Safe Design

Detailed Product Description
L / D Ratio:30 : 1Film Width:1200 - 2000mm
Output:50 - 150kg / HScrew Diameter:50 - 65mm / 55 - 70mm / 65 - 90mm
Bubble Specification:6 X 3.2mm 10 X 3.8mm 25 X10 Mm 30 X 10mmMaterial:HDPE / LDPE

Ⅰ. Characteristic



♦ Bubble Wrap Machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

♦ Bubble Wrap Machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

♦ Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

♦ It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc.

♦ So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

Ⅱ. Feature



This air crew adopts the disposable shaping craft.It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational in structure of the machine.

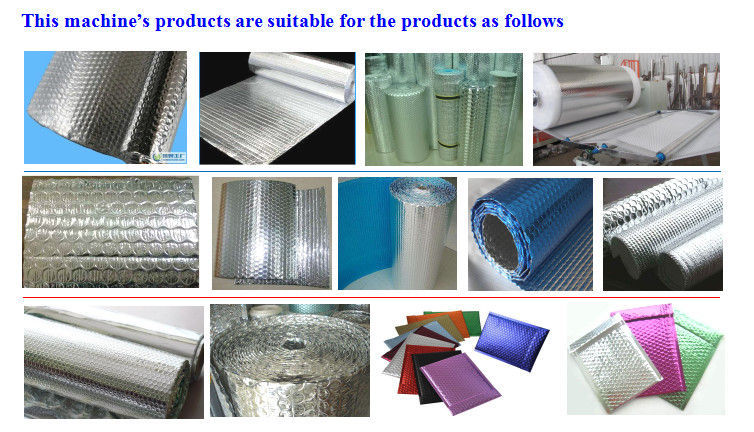

Bubble Wrap Machine is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

 Main Specification:



ModelDYF-1600
Main and auxiliary extruder screw diameterΦ70mm Φ55mm
L/D30:1
Main and auxiliary extruder electrical power18.5KW 11KW
Width of production1600 mm
Main bubble specification10×3.8mm 6×3.2mm 25×10mm 30×10mm
Output60-110kg/h
Total installed capacity98kw
Overall dimension7500mm×2800mm×2800mm
Gross weight6.8T






Packaging & Shipping



  • Port: Ningbo
  • Packaging details: With stretch film and bubble film package outside
  • Delivery detail: Within 30 work days after receiving the deposit payment
