High Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm width

High Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm width

High Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm width
High Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm widthHigh Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm widthHigh Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm widthHigh Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm widthHigh Speed Air Bubble Film Machine Stainless Steel Material 2000 - 3000 mm width
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDY-2000/DY-2500/DY-3000
FOB portningbo and shanghai
Terms of PaymentL/C, Western Union
Download DOC
Update Time2018-05-26
Detail Information

Wide In Width high speed PE Air Bubble film making Machine 2000-3000mm

Detailed Product Description
Model No.:DYF-2000WIDTH:2000-3000MM
MOTOR:87-130KWOUTPUT:150-220KG/h
WEIGHT:7.5TONSCREW DIAMETER:75/75 DOUBLE
COLOR:YELLOW AND BLACKMATERIAL:LLDPE HDPE

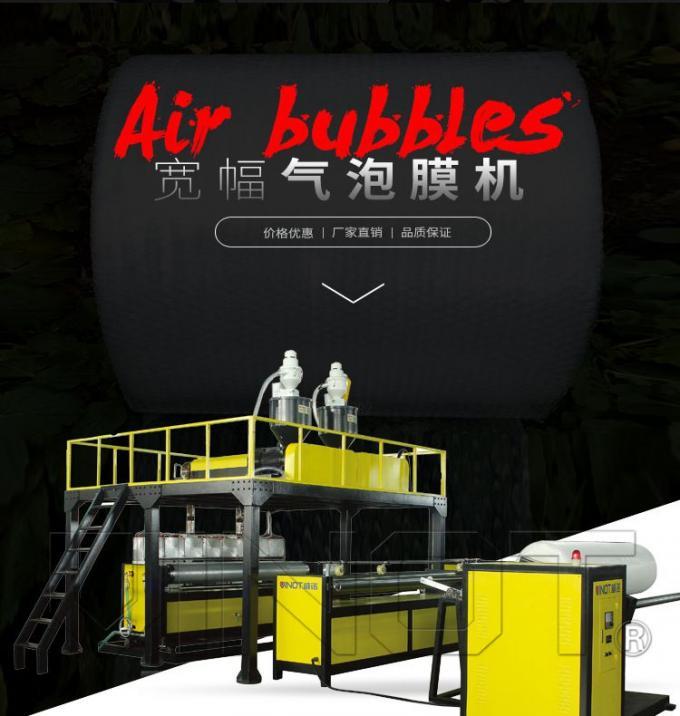

Name Of Product:High Speed Compound Air Bubble Film Machine

Wide In Width PE Air Bubble film Machine 2500mm



Feature:

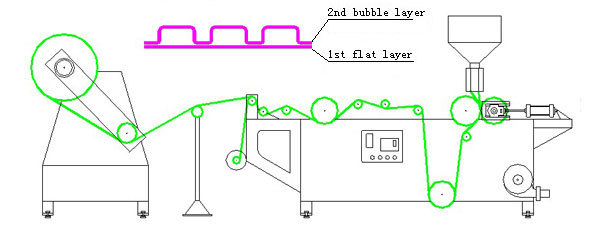

This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational in structure of the machine.



Main Technical Parameter

MODELDYF-2000DYF-2500DYF-3000
SUITABLE RAW MATORIAL                                   HDPE LDPE LLDPE
WIDTH OF PRODUCTION190024002900
MAIN BUBBLE SPECIFICATIONφ6*3.2mm φ10*3.6mm φ25*10mm φ30*10mm
TOTAL INSTALLED POWER87kw102kw128kw
COVER DIMENSION(M)8*3.5*3.58*4*3.58*4.5*3.5
OUTPUT100-160Kg/h120-190Kg/h150-230Kg/h
GROSS WEIGHT6T7T8.5T
 EXTRUDER
SCREW DIAMETER(mm)65/6570/7075/75
SCREW L/D30:1
SCREW MATERIALSACM-65/38CRMOLA
CYLINDER MATERIALSACM-65/38CRMOLA
CYLINDER COOLING240240240
DRIVING MOTOR(KW)18.5/18.5kw18.5/18.5kw22/22kw
TYPE OF DIE
DIE SIZE200025003000
TEMPERTURE CONTROL777
TAKE-UPUNIT
ROLLER WIDTH(mm)200025003000
TAKE-UP SPEED(M/min)10-8010-8010-80
TAKE-UP MOTOR(kw)2.22.22.2
WINDING UNIT
SURFACE FRICTION/CENTER REWINDER
WINDING MOTOR(KW)2.22.22.2
WINDING SPEED(M/min)10-8010-8010-80

 Air Compressor

 Waste Recycling Online

 Automatic Roll Alternation

 Hydraulic Net Changer

Air lift type winding                                additional part
