80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material

80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material

80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material
80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material80-130kg/h High Speed Air Bubble Film Machine HDPE / LDPE Material
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDY-1200/DY-1600/DY-1800/DY-2000
FOB portningbo
Terms of PaymentL/C, Western Union
Download DOC
Update Time2018-05-27
Detail Information

 80-130kg/h  High Speed Air Bubble Film Machine HDPE / LDPE Material

Detailed Product Description
Film Width:1200 - 2000mmOutput:60 - 190kg / H
Bubble Specification:6 X 3.2mm 10 X 3.6mm 25 X10 Mm 30 X 10mmMaterial:HDPE / LDPE
Gros Weight:3800kg - 6000kgExtruder Electrical Power:18.5kw - 37kw



DY - 1600 Three Layers High Speed PE Air Bubble Film Extruder Machine





Bubble Wrap Manufacturing Machine Feature:



This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational in structure of the machine.





Bubble Wrap Manufacturing Machine Application:



The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.





Main Specification:



ModelDY-1600
Main and auxiliary extruder screw diameterΦ75mm
L/D30:1
Main and auxiliary extruder electrical power22KW
Width of production1600 mm
Main bubble specification10×3.6mm 6×3.2mm 25×10mm 30×10mm
Output80-130kg/h
Total installed capacity75kw
Overall dimension6000mm×3500mm×3150mm
Gross weight4T





Optional Device:

                           1. Automatic roll changer

                           2. Electric screen fliter

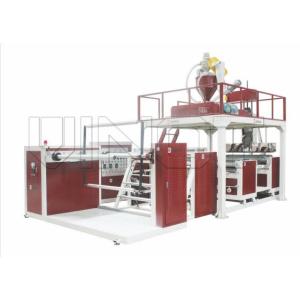

Details Picture :



3800kg - 6000kg High Speed Air Bubble Film Machine HDPE / LDPE Material

3800kg - 6000kg High Speed Air Bubble Film Machine HDPE / LDPE Material
