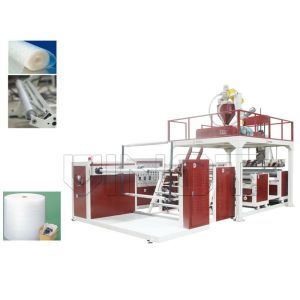

PE Bubble Film Making Machine

PE Bubble Film Making Machine
PE Bubble Film Making Machine
PE Bubble Film Making MachinePE Bubble Film Making MachinePE Bubble Film Making MachinePE Bubble Film Making MachinePE Bubble Film Making Machine
CategoriesPE air bubble film machine
AlbumView larger image
place of originWenzhou, zhejiang, China
FOB portningbo
Terms of PaymentL/C, Western Union
Download DOC
Update Time2020-05-26
Detail Information

1200 - 2000mm Width PE Air Bubble Film Machine

Detailed Product Description
Material:HDPE / LDPEFilm Width:1200 - 2000mm
Extruder Electrical Power:18.5kw - 37kwBubble Specification:6 X 3.2mm 10 X 3.6mm 25 X10 Mm 30 X 10mm
Output:60 - 190kg / HGros Weight:3800kg - 6000kg



Air Bubble Film Making Machine is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.



1. Air Bubble Film Making Machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

2. Air Bubble Film Making Machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

3. Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

4. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc.

5. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.



This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational in structure of the machine.

Main Specification:


Main and auxiliary extruder screw diameterΦ75mm
Main and auxiliary extruder electrical power22KW
Width of production1600 mm
Main bubble specification10×3.6mm 6×3.2mm 25×10mm 30×10mm
Total installed capacity75kw
Overall dimension6000mm×3500mm×3150mm
Gross weight4T
