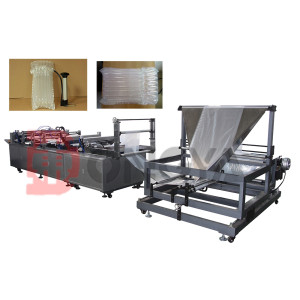

buffer column bag forming machine

buffer column bag forming machine

buffer column bag forming machine
buffer column bag forming machinebuffer column bag forming machinebuffer column bag forming machinebuffer column bag forming machinebuffer column bag forming machine
CategoriesAir column bag making machine
AlbumView larger image
BrandVinot
ModelDY-800 ( bag piece by piece)
Unit PriceUS $ 40000 / piece
FOB portNINGBO
Terms of PaymentL/C, T/T
Update Time2018-05-26
Detail Information



Cushion Air Column Bag Forming Machine DY-800

Bag piece by piece

Membrane Roll Size:

Max. roll width: 1250mm

Max. roll diameter:

400mm

Speed :

24-35 pcs/min.

Max. Bag length:

<900mm

Max. Bag width:

<750mm

Power consumption:

2.7 kw

Air supply:

0.65MPA

Weight:

1800kg

Dimensions:

4400 X 2400 X 1480 mm



This production line uses PE/PA co-extruded film and the air valve film to weld air column sheet film and the air valve film to weld air column sheet first, then fold the air column sheet to the desired bag pattern, and then seal and cut to get the finished air column bags. Wide range of bag patterns can be achieved by this line such as Q bag, U bag, Cap, Pad, etc., for different cushion packaging requirement. Promivision fully automatic high speed air column bag production line boasts high efficiency, versatility and flexibility.

Cushion Air Column Welding Machine Model DY-1200

Technical Parameters:

Membrane Roll Size

Max. roll width: 1250mm

Max. roll diameter

500mm

The Highest Speed of Column Pressing:

18 cycles/min.(Speed adjustable)

20 mm column- 14 columns per pressing

30 mm column- 10 columns per pressing

40 mm column- 7 columns per pressing

60 mm column- 5 columns per pressing

The Max. Width of Pressed Column:

1220mm

Power consumption:

15.2 kw

Air supply:

0.68MPA

Weight:

2800kg

Dimensions:

5320 X 1800 X 1680 mm

Bag Making Parameters: Realized by PCL control panel for setting pressing time, pressing temperature, standards compensation, roll-unwinding, automatic variation correction system

This production line uses PE/PA co-extruded film and the air valve film to weld air column sheet first, then fold the air column sheet to the desired bag pattern, and then seal and cut to get the finished air column bags. Wide range of bag patterns can be achieved by this line such as Q bag, U bag, Cap, Pad, etc., for different cushion packaging requirement. Promivision fully automatic high speed air column bag production line boasts high efficiency, versatility and flexibility.

Core Benefits of Cushion Air Column Bags

1 5 or 7 layer PE/PA co-extruded film deliver high strength and superior airtightness, which ensure the optimum cushion performance of the air column bags.

2 Wide variety of bag patterns such as Q bag, U bag, Cap, Pad, Roll, etc, can meet every cushion packing requirement.

3 The bag utilizes one-way air valve, which enables all the columns of the bag to be inflated sinmultaneously, and the air will be locked inside the columns.

4 If one column of the bag is broken or torn, the other columns will remain intact, as each column is independent.
