Home > Products > Air column bag making machine >

buffer column manufacturing machine

buffer column manufacturing machine

buffer column manufacturing machine
buffer column manufacturing machinebuffer column manufacturing machinebuffer column manufacturing machinebuffer column manufacturing machinebuffer column manufacturing machine
CategoriesAir column bag making machine
AlbumView larger image
BrandVinot
ModelDY-1200
Unit PriceUS $ 40000 / piece
FOB portNINGBO
Terms of PaymentL/C, T/T
Update Time2018-08-17
Detail Information

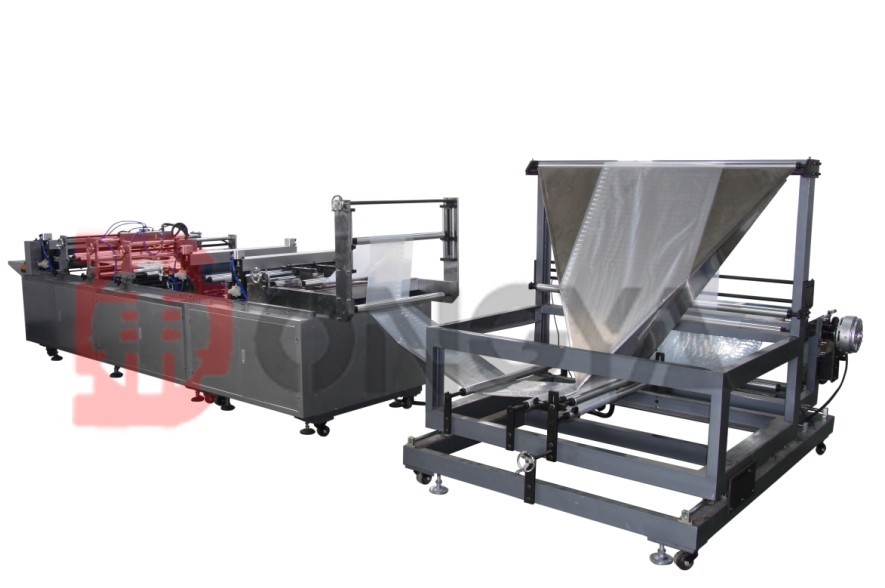

Model : DY-1200 (roll type)

Technical Parameters:

Membrane Roll Size

Max. roll width: 1250mm

Max. roll diameter

500mm

The Highest Speed of Column Pressing:

18 cycles/min.(Speed adjustable)

20 mm column- 14 columns per pressing

30 mm column- 10 columns per pressing

40 mm column- 7 columns per pressing

60 mm column- 5 columns per pressing

The Max. Width of Pressed Column:

1220mm

Power consumption:

15.2 kw

Air supply:

0.68MPA

Weight:

2800kg

Dimensions:

5320 X 1800 X 1680 mm


Column Pressing Parameters: Realized via PLC control panel for column pressing speed, welding temperature, pressing time, standards compensation,etc.


DY-1200 (roll type) ,this machine should be combined with DY-800 (bag piece by piece),both sets of equipment together through certain procedures to the products of raw material into a cushioning packaging material roll film.

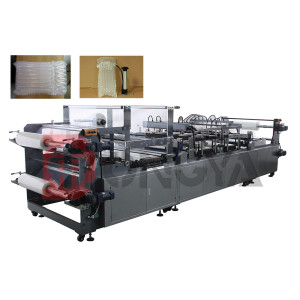

Model : DY-800 ( bag piece by piece)


Technical Parameters:

Membrane Roll Size: Max. roll width:

1250mm

Max. roll diameter:

500mm

The Highest Speed of Column Pressing: 18 cycles/min.(Speed adjustable)

20 mm column- 14 columns per pressing

30 mm column- 10 columns per pressing

40 mm column- 7 columns per pressing

60 mm column- 5 columns per pressing

The Max. Width of Pressed Column:

1220mm

Power consumption:

15.2 kw

Air supply:

0.68MPA

Weight:

2800kg

Dimensions:

5320 X 1800 X 1680 mm

           This production line uses PE/PA co-extruded film and the air valve film to weld air column sheet first, then fold the air column sheet to the desired bag pattern, and then sealand cut to get the finished air column bags. Wide range of bag patterns can beachieved by this line such as Q bag, U bag, Cap, Pad, etc., for differentcushion packaging requirement. Promivision fully automatic high speed aircolumn bag production line boasts high efficiency, versatility and flexibility.

        Realized by PCL control panel for setting  pressing time, pressing temperature, standards compensation, roll-unwinding,automatic variation correction system.
