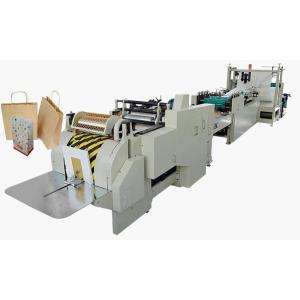

LFD-330 Roll Feeding Square Bottom Paper Bag Making Machine

LFD-330 Roll Feeding Square Bottom Paper Bag Making Machine

LFD-330 Roll Feeding Square Bottom Paper Bag Making Machine
LFD-330 Roll Feeding Square Bottom Paper Bag Making MachineLFD-330 Roll Feeding Square Bottom Paper Bag Making MachineLFD-330 Roll Feeding Square Bottom Paper Bag Making MachineLFD-330 Roll Feeding Square Bottom Paper Bag Making Machine
CategoriesPaper bag making machine
AlbumView larger image
BrandVinot
ModelLFD-330
Unit PriceUS $ 120000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T
Update Time2018-08-18
Detail Information

Performance And Characteristics:

DY-330 High-speed Roll Fed Paper Bag Machine is the new generation of high-speed square bottom paper bag machine, it has high speed and high production efficiency, the advantages of a large adjustment range, and with international advanced technology, the material is paper or printed paper by the automatic hydraulic roll loading , bag side glue, form as tube, cut off, bottom crease, bottom glue, bags bottom forming, the finished bags. Central computer control system, human interface touch screen PLC, servo motor controlled by the length of paper bags, produce a variety of dimension of bags. One minute could produce maximum 190 bags which reducing a lot of labor cost, which is your ideal partner in business.

Main Technical Parameter

Maximum Speed (bag/min.)

190

Total Power (kw)

16

Machine Weight (Ton)

10

Machine Dimension (L*W*H)

12500*2100*2000mm

Paper Roll Width (mm)

410-990

Maximum Paper Roll Width (mm)

1500

Paper Gram Weight (g/㎡)

70-150

Bag tube length (mm)

280-600

Bag Width (mm)

120-330

Bag Bottom Width (mm)

70-150

Parts List

DY-330  Roll Fed Square Bottom Paper Bag Machine

No.

Name

Model

Specifications

Quantity

manufacturers

Remarks

1

Frequency Converter

VFD055B43A

5.5KW/44V

1

DELTA

Taiwan

2

Rotary Cut Drive

PDS-4055N

12A/9.5KOA

1

REMAPOWER

Taiwan

3

Programmable Controller

DVP20EH00T2

1

DELTA

Taiwan

4

servo drivers

SGDM-50ADA

32.8A/5.0KW

1

YASKAWA

Japan

5

Tension controller

3A

1

China

6

Encoder

OVW2-2500-2MD

2500P/R

1

Japan

7

Encoder

OVW2-1024-2MHT

1024P/R

1

Japan

8

AC contactor

CJX2-5011

50A/220V

1

CHNT

China

9

AC contactor

CJX2-0910

9A/220V

1

CHNT

China

10

AC contactor

CJX2-0901

9A/220V

2

CHNT

China

11

Circuit Breaker

DZ47-60

C32

4

CHNT

China

12

Circuit Breaker

DZ47-60

C5

1

CHNT

China

13

Circuit Breaker

DZ47-60

C1

1

CHNT

China

14

Switching Power Supply

HS-50-24

2.1A

1

DELTA

Taiwan

15

Terminal blocks

TC-604

60A

1

China

16

Terminal blocks

TD-1525

15A

1

China

17

Terminal blocks

TD-1515

15A

1

China

18

Terminal blocks

TD-1510

15A

1

China

19

Relay

JZX-22FD/3Z

DV24V

2

CHNT

China

20

Copper

grounding

1

China

21

Exhaust fan

MQ12038

0.13A

1

China

22

Button

LA39B3-11x/k

rotation

4

APT

China

23

Button

LA39B3-10/g

Green

5

China

24

Button

LA39B3-10/r

Red

2

China

25

Button

LA39B3-R112/r

Emergency

3

China

26

Button

NP3-1

Jog

1

CHNT

China

27

work lights

AD16-22D/-S

1

APT

China

28

Warning Light

LTE-1101J

China

29

OMRON Optical radiation

E3F3-T81

PNP

1

OMRON

Japan

30

Banner Photocell

R58A

NPN

1

Banner

America

31

proximity switches

DW-AD-611-M12

NPN

1

China

32

proximity switches

DW-AD-613-M12

PNP

2

China

33

Travel switch

YBLX-K1/411

5A

2

CHNT

China

34

Resistance

7G11-15D

360

1

China

35

Capacitor

CBB61P0

6üF

1

China

36

Circular
connector

P32K3Q

12

2

Haogncn Connectors

China

37

Circular
connector

P28K2Q

8

1

China

38

Circular
connector

P28K11Q

6

1

China

39

Circular
connector

P28K9Q

4

2

China

40

U Photoelectric

1

China


Note:

Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.
