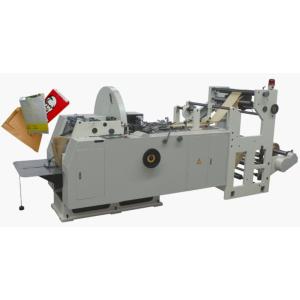

LMD-400Automatic High Speed Paper Bag Machine

LMD-400Automatic High Speed Paper Bag Machine

LMD-400Automatic High Speed Paper Bag Machine
LMD-400Automatic High Speed Paper Bag MachineLMD-400Automatic High Speed Paper Bag MachineLMD-400Automatic High Speed Paper Bag MachineLMD-400Automatic High Speed Paper Bag Machine
CategoriesPaper bag making machine
AlbumView larger image
BrandVinot
ModelLMD-400
Unit PriceUS $ 32000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T, Western Union
Update Time2018-05-23
Detail Information

I.Introduction:

1.This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency.

2.It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

II.Features:

1.Suited for 30-80gsm paper.

2.Controls bag length through the human-machine touch screen interface.

3.PLC programmable servo motor control system

4.Equipped with an accurate photocell system for printed mark tracking.

5.Color mark error stopping system

6.Automatic oil lubrication system

III.Main Technical Parameter

Cutting length(C)

150-460mm

Bag length(H)

140-450mm

Bag width(L)

80-250mm

Gusset depth(S)

10-50mm

Standard flap(P)

12-17mm

speed

300pcs/min

Paper thickess

30-80g/m2

Power

:6kw

Total weight

3500kg

dimensions

4580(L)x1650(W)x1850(H)mm

IV.Note:

Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.
