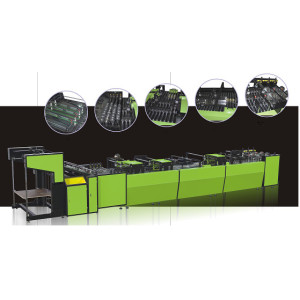

Handbag Forming Machine

Handbag Forming Machine

Handbag Forming Machine
Handbag Forming MachineHandbag Forming MachineHandbag Forming MachineHandbag Forming Machine
CategoriesPaper bag making machine
AlbumView larger image
BrandVinot
ModelZDJ-1200A
Unit PriceUS $ 150000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T, T/T
Update Time2018-08-18
Detail Information

I.Briefing introduction:                           Portable Paper Bag Making machine mainly applies raw materials of impressed single paper for manufacturing various middle and high level portable paper bags, and features a continuous function of automatic delivery of creased paper, line aligning, gluing, tube formation, folding, impressing and bag tube output. It adopts water soluble cold glue and glue spraying system. Applying this product could achieve effect of human resource optimization, high speed and stabilization.

II.Main Technical Parameter

Main Technical Parameter

Model

 ZDJ-1200A

Motor Power

10KW

Table size

710×410

Weight

4000kg

Physicaldimension(length×width×height )

10050×1720×1690mm

Max. paper size

1200×600mm (length×width)

Min. paper size

540×310mm (length×width)

Paper weight

100-400g

Bag-Making Speed

7000pcs/Hour

Glue

Water-Soluble Cold glue

Bottom Thickness

50-200mm

ZDJ-1200A Spare Part & Toolkit List

NO.

Specification

Quantity

Spare Part

ZDJ -0192

50(mm)

4 PCS

ZDJ -0192-2

80(mm)

4 PCS

ZDJ -0192-3

110(mm)

4 PCS

ZDJ -0191

35 / 50 / 70 / 110 / 160 / 190(mm)

Each 2 PCS

ZDJ -0441

100 / 60 / 30(mm)

Each (Front &Back) 2 PCS

Screwdriver

1 SET

Nozzle of Feeder

10 PCS

Paper-pressing Belt

Ø8mm

1 SET

Paper-pressing roller

1 SET

O-shaped Ring

47-5*5-3

35.5*35.5

30*3.55

26.5*3-55

Each 10 PCS

Toolkit

Phillips screwdriver

Flat Tip Screwdriver

Inner Hexagon Spanner  1 SET

10 Size Adjustable Wrench

Open End Wrench:8*10 /10-12/ 12-14/ 14*17/ 17-19
