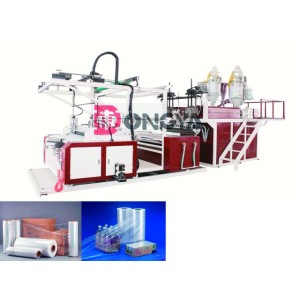

SLW Series Cling Film Production Line(Automatic Winder)

SLW Series Cling Film Production Line(Automatic Winder)

SLW Series Cling Film Production Line(Automatic Winder)
SLW Series Cling Film Production Line(Automatic Winder)SLW Series Cling Film Production Line(Automatic Winder)SLW Series Cling Film Production Line(Automatic Winder)SLW Series Cling Film Production Line(Automatic Winder)SLW Series Cling Film Production Line(Automatic Winder)
CategoriesStretch film machine
AlbumView larger image
BrandVinot
ModelDY-SLW
Unit PriceUS $ 25000 / piece
FOB portningbo
Terms of PaymentL/C, T/T, Western Union, T/T
Download DOC
Update Time2018-05-27
Detail Information

I.Main characteristic of the machine:

1、It profits advanced technology from aboard and manufacture. by absorption, improvement, innovation.

2、It is entire frequency conversion control, movement stable, highly effective and the low energy consumption.

3、 The product adopts the craft of one time forming.

4、 It can produce two-side sticks for stretching film.

5、  The special side material rollout element by round-trip.

II.Unit introduction

This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch (stretching film, twines membrane) as well as fresh film. The film can achieve

the effect which is one-side and two-side sticks. Therefore it applies in building material, hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel. It manufactured by nitric and precise processing so that it is highly hardness and durable long time. Temperature controls adopts advanced automatic control system and the T mold adopts the multi- spots adjustment. They could cause the film thickness to be evener. The cooling system adopts the circulating water cool and it cooling effect is good. The rollout installment adopts the friction type of rollout and has the cutting edge installment and side material rollout element by round-trip. This causes the film which rollout to be neater.

Ⅲ. Main Technical Parameter

Model

SLW-600 double layers

SLW-600 single layer

Screw Diameter

50mm×2

55mm

L/D ratio

28:1

28:1

Screw Barrel Material

38CRMOLA

38CRMOLA

Die width

750mm

750mm

Film Width

600mm

600mm

Thickness

0.008-0.05mm

0.008-0.05mm

Rollout Diameter

300mm

200mm

Output

50kg/h

35kg/h

Main Motor Power

7.5×2 kw

11kw

Heating Power

30kw

15kw

Overall dimension:

4800×2000 ×2600mm

6000×1500×2500mm

Total Weight

3500kg

3000kg

Standard configuration

Item

Description

quantity

1

Automatic Winding changer

1pcs

2

Automatic Air shaft

2pcs

3

Automatic Trimming device

1pcs

4

Automatic Temperature Control

12unit

4

Step less Inverter

1set

5

Step Motor

1set

6

AC Motor

1set

7

Gear box

1set

8

Panel box

1set

9

Switch (ZHENGTAI)

Several pcs

10

Electrical component (ZHENGTAI)

Several pcs

11

Hopper

2pcs

12

Cooling roll (diameter: 270mm)

2pcs

13

Air compressor

1pcs

Spare Accessories

Item

Description

Quantity

1

Tools

1pcs

2

Instructions

1pcs

3

Schematic

1pcs

4

Current meter

1pcs

5

Voltage meter

1pcs

6

Thermocouple

1pcs

7

Relay

1pcs

8

Out color

Green
