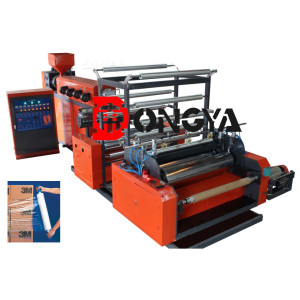

DY-SLW Series Single Layer Co-extrusion Stretch Film Production Line

DY-SLW Series Single Layer Co-extrusion Stretch Film Production Line

DY-SLW Series Single Layer Co-extrusion Stretch Film Production Line
DY-SLW Series Single Layer Co-extrusion Stretch Film Production LineDY-SLW Series Single Layer Co-extrusion Stretch Film Production LineDY-SLW Series Single Layer Co-extrusion Stretch Film Production LineDY-SLW Series Single Layer Co-extrusion Stretch Film Production Line
CategoriesStretch film machine
AlbumView larger image
BrandVinot
ModelSLW-500/1000
Unit PriceUS $ 25000 / piece
FOB portningbo
Terms of PaymentL/C, T/T, Western Union, T/T
Download DOC
Update Time2018-08-18
Detail Information

.Feature:

1. It profits advanced technology from aboard and manufacture by absorption, improvement, innovation.

2. It is entire frequency conversion control, movement stable, highly effective and the low energy consumption.

3. The product adopts the craft of one time forming.

4. It can produce two-side sticks for stretching film, cling film.

Ⅱ. Unit introduction

1. This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch (stretching film, twines membrane) as well as fresh film.

2. Therefore it applies in building material, hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel. It manufactured by nitric and precise processing so that it is highly hardness and durable long time.

3. Temperature controls adopts advanced automatic control system and the T mold adopts the multi- spots adjustment. They could cause the film thickness to be evener.

4. The cooling system adopts the circulating water cool and it cooling effect is good.

5. The rollout installment adopts the friction type of rollout and has the cutting edge installment and side material rollout element by round-trip. This causes the film which rollout to be neater.

. Main Technical Parameter

Model

SLW-1000

Screw Diameter

60mm

L/D ratio

28:1

Screw Barrel Material

38CRMOLA

Die width

1250mm

Film Width

1000mm, 500×2, 300×3

Thickness

0.008-0.05mm

Rollout Diameter

200mm

Max. output

50kg/h

Main Motor Power

15kw

Heating Power

25kw

Overall dimension:

6000×2000×2500mm

Total Weight

4000kg

Standard configuration

Item

Description

quantity

1

Automatic Winding changer

1pcs

2

Inverter

1set

3

Automatic Trimming device

1pcs

4

Automatic Temperature Control

12unit

5

Step Motor

1set

6

AC Motor

1set

7

Gear box

1set

8

Panel box

1set

9

Switch (ZHENGTAI)

Several pcs

10

Electrical component (ZHENGTAI)

Several pcs

11

Hopper

1pcs

12

Cooling roll (diameter: 270mm)

2pcs

13

Air compressor

1pcs

Accessories

Item

Description

Quantity

1

Tools

1pcs

2

Instructions

1pcs

3

Schematic

1pcs

4

Current meter

1pcs

5

Voltage meter

1pcs

6

Thermocouple

1pcs

7

Relay

8

Main electrical components

9

Button switch
