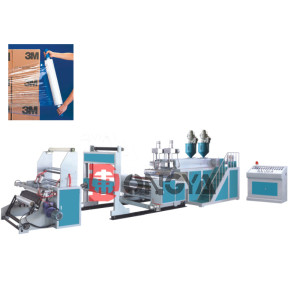

SLW-1000 Double Layers High Speed Stretch Film Making Machine Production Line

SLW-1000 Double Layers High Speed Stretch Film Making Machine Production Line

SLW-1000 Double Layers High Speed Stretch Film Making Machine Production Line
SLW-1000 Double Layers High Speed Stretch Film Making Machine Production LineSLW-1000 Double Layers High Speed Stretch Film Making Machine Production LineSLW-1000 Double Layers High Speed Stretch Film Making Machine Production LineSLW-1000 Double Layers High Speed Stretch Film Making Machine Production Line
CategoriesStretch film machine
AlbumView larger image
BrandVinot
ModelDY-SLW-1000
film width1000mm
layers numberdouble layers
T-die width1250mm
FOB portningbo and shanghai
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-08-18
Detail Information


Ⅰ.Feature:
1. The machine suitable for LDPE or LLDPE stretch film making.

2. This machine adopt double screw, and two feed cylinder can adopt different material recipe.

3. The production can have single side sticky, it widely used for construction material, hardware packing, etc.

4. The screw and barrel adopt 38CrMOLA alloy steel, through nitrogen treatment process it.

5. The cool device adopt recycle water cooling, good effective and can let the film transparency much more.

Ⅲ. Main Technical Parameter

Model

SLW-1000

Screw Diameter

60mm×1 90mm×1

L/D ratio

32:1

Screw Barrel Material

38CRMOLA

Die width

1300mm

Film Width

1000mm

Die lip gap

0.2mm-2mm

Die heating power

16.4kw

Thickness

0.008-0.05mm

Rollout Diameter

500mm

Output

85-120kg/h

Extruder drive Motor Power

37kw×1 18.5kw×1

Barrel Heating Power

36kw

Barrel speed

0-80r/min

Traction drive motor

2.2kw

Traction speed

20-100m/min

Auto rewind motor

2.2kw

Overall dimension:

4800×2600×2600mm

Total Weight

4500kg
