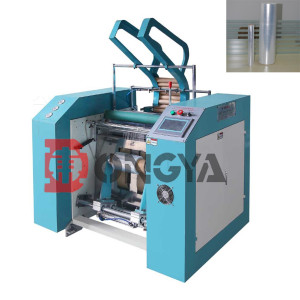

Stretch Film and Cling Film Rewind Slitter Machine

Stretch Film and Cling Film Rewind Slitter Machine

Stretch Film and Cling Film Rewind Slitter Machine
Stretch Film and Cling Film Rewind Slitter MachineStretch Film and Cling Film Rewind Slitter MachineStretch Film and Cling Film Rewind Slitter MachineStretch Film and Cling Film Rewind Slitter MachineStretch Film and Cling Film Rewind Slitter Machine
CategoriesPlastic Film Slitting and Rewinder Machine
AlbumView larger image
BrandVinot
ModelStretch Film and Cling Film Rewind Slitter Machine
FOB portningbo
Terms of PaymentL/C, T/T
Update Time2018-05-24
Detail Information

Application

It is a kind of multi-functional machine integrated with slitting and rewinding. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality ect.

It mainly is used to re-wind the PE stretch film and PE cling film. The automatic rewinder can greatly improve the work efficiency

Feature

1- It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.

2- Adopt PLC touch screen. Guarantee the operation more correction and easy.

3- The speed is controlled system is: AC motor + Inverter

4- The conveyer belt is the Teflong brand which import from Germany. It is very strong.

specification:


Type

DYRW-300

Width of finished products

300mm

Main motor

2.2kw

Move motor

0.37kw

Linear speed of machinery

200-600m/min

Roll laying mode

By hand

Diameter of parent roll(max)

φ400mm

Width of parent roll(max)

300mm

Core specification of parent roll

according to customer request

Width of sub-roll

300mm

Diameter of sub-roll(max)mm

φ300mm

Core specification of sub-roll

according to customer request

Overall dimensions (L×W×H)

1.4×1.1×1.1m

Weight

0.6T
