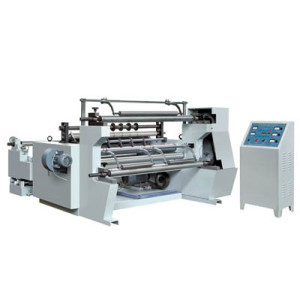

Computer Controlled Horizontal Type Film Slitting Machine

Computer Controlled Horizontal Type Film Slitting Machine

Computer Controlled Horizontal Type Film Slitting Machine
CategoriesPlastic Film Slitting and Rewinder Machine
AlbumView larger image
BrandVinot
ModelDY-WFQ-1100
width1100mm
Unit PriceUS $ 6000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T, T/T
Update Time2018-05-24
Detail Information

Ⅰ. Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminium foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production.

Ⅱ.Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ ㎡.

2. Independent master control screen, more flexible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.

Ⅲ.Main Technical Parameter

Model

DY-WFQ-1100

DY-WFQ-1300

Max. diameter of roll material

600mm

600mm

Max width or roll material

1000mm

1300mm

Paper inner Dia

76mm

76mm

Width of roll material cutting

20-1000mm

20-1200mm

Cutting tension

160m/mm

160m/min

Accurate of adjustment

±0.5mm

±0.5mm

Total power

3.8kw

5.5kw

Weight

1500kg

1800kg

Overall size

2300×2200×1200mm

2300×2400×1200mm




Max dia


600mm


Max width


1000  1300mm


Paper inner dia


76mm


Cutting dimension


20-1300mm


Cutting tension


160m/mm


Accurancy of adjustment


±mm


Power


3.8kw/4.8kw


Weight


1500kg


Overall size


2200×1300×1500 / 2450×1300×1500

 Feature:

1.This machine has advantage as photoelectrical tracking, auto adjustment, tension control and rewind counter.

2.This machine operates easily, running stably and so on.

3. This machine widely used for slitting plastic film, medical film, paper, medical paper, aluminium foil, etc.

4. Adopt full computer controller, more convenience.
