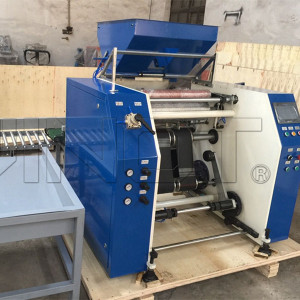

Stretch Film Rewinder Slitter Machine

Stretch Film Rewinder Slitter Machine
Stretch Film Rewinder Slitter MachineStretch Film Rewinder Slitter MachineStretch Film Rewinder Slitter MachineStretch Film Rewinder Slitter Machine
CategoriesPlastic Film Slitting and Rewinder Machine
AlbumView larger image
BrandVinot
ModelDYRW-500
Unit PriceUS $ 4500 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T, T/T
Update Time2018-05-24
Detail Information

.Feature:

1. It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.

2. Adopt PLC touch screen. Guarantee the operation more correction and easy.

3. The speed is controlled system is: AC motor + Inverter

4. The conveyer belt is the Teflong brand which import from Germany. It is very strong.

II.Application
1. It is a kind of multi-functional machine integrated with slitting and rewinding.
2. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.

. Main Technical Paramete

Type

DYRW-500

Width Of Finished Products

500mm

Power Of Motor

1.5kw

Linear Speed Of Machinery

400m/min

Roll Laying Mode

By Hand

Diameter Of Parent-roll(Max)

Φ400mm

Width Of Parent-roll(Max)

500mm

Core Specification Of Parent-roll

3''

Width Of Sub-roll

500mm

Diameter Of Sub-roll(Max)mm

Φ300mm

Core Specification Of Sub-roll

3'',2''

Overall Dimensions

1.4*1.1*1.1m

Weight

0.7T
