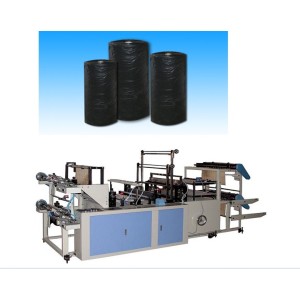

Computer Controlled High Speed Continuous Winding Rolls Garbage Bag Making Machine

Computer Controlled High Speed Continuous Winding Rolls Garbage Bag Making Machine
Computer Controlled High Speed Continuous Winding Rolls Garbage Bag Making Machine
CategoriesBag Making Machine
AlbumView larger image
BrandVinot
ModelComputer Controlled High Speed Continuous Winding
Unit PriceUS $ 6500 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-01-23
Detail Information

 I.Feature
1.Main for produce vest bags that take LDPE,HDPE as raw material.
2.With computer PLC control,high automatic
3.Automatic length setting,photoelectrical tracking
4.utomatic punching,bag-making,conveying.

II.Main Technical Parameter

Model

GFQ-600

GFQ-800

GFQ-1000

Max.Bag-making width

160-600mm

160-800mm

160-1000mm

Max.Bag-making length

320-650mm

320-650mm

320-650mm

Bag-making thickness

0.015-0.035mm

0.015-0.035mm

0.015-0.035mm

Bag-making speed

60-100pcs/min×2-4

60-100pcs/min×2-4

60-100pcs/min×2-4

Air pressure

 5kg/cm2

5kg/cm2

5kg/cm2

Total power

7kw

 8kw

9kw

Weight of machine

  1300kg

  1400kg

 1500kg

Overall dimensions (L×W×H)

5300×1200×1800mm

5300×1200×1800mm

5300×1200×1800mm
