FQ Series Computer-Controlled Double Line Flat Bag Sealing Machine

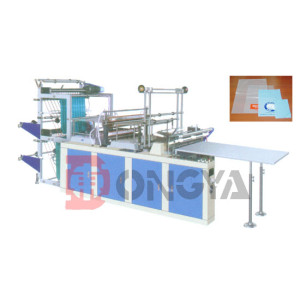

FQ Series Computer-Controlled Double Line Flat Bag Sealing Machine

FQ Series Computer-Controlled Double Line Flat Bag Sealing Machine
FQ Series Computer-Controlled Double Line Flat Bag Sealing MachineFQ Series Computer-Controlled Double Line Flat Bag Sealing Machine
CategoriesBag Making Machine
AlbumView larger image
BrandVinot
ModelFQ-600/800/1000
Unit PriceUS $ 7000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-24
Detail Information

I.Feature

1.Automatic counting and alarming.
2.With accurate photocell eye tracking ,stops automatically in case of wrong color marks.
3.The bag-making length is controlled by button.
4.Applicable for the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE) thin film to sealing and cutting natural and colour bags,etc.
5.Widely used for packing food,cloth,industrial products and electric appliances.


II.Main Technical Parameter

Model

FQ-600

FQ-800

FQ-1000

Max. Sealing and Cutting Width

550mm

750mm

1000mm

Sealing and Cutting length

1200mm

1600mm

1600mm

Sealing and Cutting Thickness

0.006-0.10mm

0.006-0.10mm

0.006-0.10mm

Error in Length

±1mm

±1mm

±1mm

Bag-making Speed

30-120pcs/min

30-120pcs/min

30-120pcs/min

Power of Main Motor

0.75kw

1.1kw

1.5kw

Heating Power

1.2kw

1.5kw

2.5kw

Total Power

2.5kw

3.2kw

5.8kw

Weight of Machine

700kg

820kg

1100kg

Overall Dimensions

2650×1200×1550mm

2650×1400×1550mm

2800×1700×1550mm
