YT Series Four Colors Flexographic Printing Machine

YT Series Four Colors Flexographic Printing Machine

YT Series Four Colors Flexographic Printing Machine
CategoriesPrinting Machine
AlbumView larger image
BrandVinot
ModelYT Series Four Colors Flexographic Printing Machin
FOB portningo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-27
Detail Information

Multi Functional Four Color Flexographic Printing Machine

Detailed Product Description
Max. Width:600 - 1200mmMax. Printing Width:580 -1180mm
Plate Thickness:2.38mmPrinting Length:190 - 960mm
Max. Diameter Of Roll Material:450mmPrinting Speed:50m / Min

DYYT - 41200 Series Four Colors Flexographic Printing Machine



Gravure Printing Equipment Feature:

1. Easy operation,flexible starting, accurate color register .

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automati-cally after lifting.

4. The printing ink is spread by the anilox cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automati-cally break circuit when the machine stops.

6. 360continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Jogging/Stopping buttons on the plate roller base and material rol-ling rack so as to make it easy operate the machine when the plate is installed.

9. Suitable for printing the packing material as PE and PP plastic bags,glass pap-ers rolling papers,etc.


Main Technical Parameters:



Model YT-4600YT-4800YT-41000YT-41200
Suitable Material LDPE HDPE
Screw Diameter Φ50Φ55Φ65Φ70
L/D 28:128:128:128:1
Printing Color 2222
  Horinzal0.2mm0.2mm0.2mm0.2mm
Vertical0.2mm0.2mm0.2mm0.2mm
Printing Extrance Width(mm) 6008001000



1200



Max. Printing Width(mm) 5807609801160
Length of Printing Product(mm) 191-1000191-914191-914191-1200
Diameter of Roll Material(mm) φ450φ450φ450φ450
Printing Speed (m/min) 50505050
Thickness of Printing Plate(mm) 2.382.382.382.38
Total Power(kw) 12.216.2k19.2523.55
Overall Dimension(m) 4.2*1.6*2.44.2*1.8*2.44.2*2.0*2.44.2*2.0*2.4
Weight(kg) 3000kg3500kg4000kg4200kg

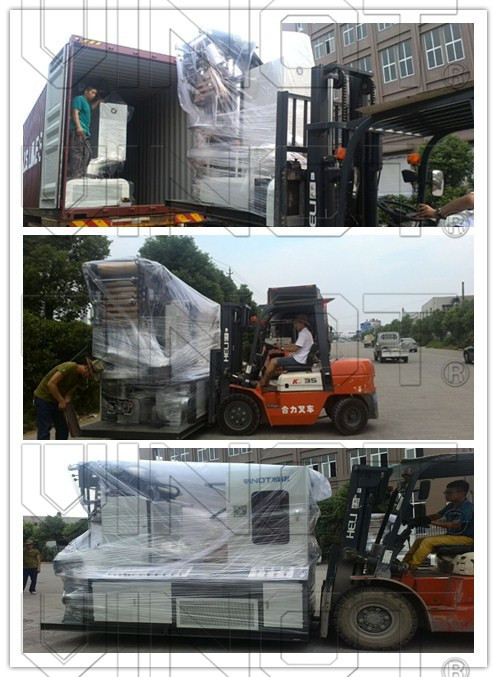

Packaging & Shipping

  • Port: Ningbo
  • Packaging details: With stretch film and bubble film package outside
  • Delivery detail: Within 30 work days after receiving the deposit payment
