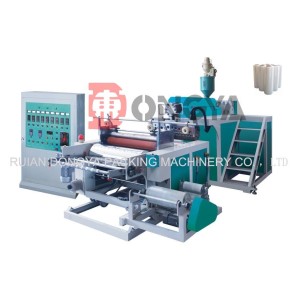

SLW-Series Single Layer Stretch Film Extruder Making Machine

SLW-Series Single Layer Stretch Film Extruder Making Machine

SLW-Series Single Layer Stretch Film Extruder Making Machine
SLW-Series Single Layer Stretch Film Extruder Making MachineSLW-Series Single Layer Stretch Film Extruder Making MachineSLW-Series Single Layer Stretch Film Extruder Making MachineSLW-Series Single Layer Stretch Film Extruder Making MachineSLW-Series Single Layer Stretch Film Extruder Making Machine
CategoriesStretch film machine
AlbumView larger image
BrandVinot
ModelSLW-Series Single Layer Stretch Film Extruder Maki
FOB portningo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-23
Detail Information

I.Main characteristic of the machine:

1、It profits advanced technology from aboard and manufacture by absorption, improvement, innovation.

2、It is entire frequency conversion control, movement stable,highly effective and the low energy consumption.

3、The product adopts the craft of one time forming.

4、It can produce two-side sticks for stretching film.

5、The special side material rollout element by round-trip.

II.Unit introduction

   This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch (stretching film, twines membrane) as well as fresh film. The film can achieve the effect which is one-side and two-side sticks. Therefore it applies in building material, hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel. It manufactured by nitric and precise processing so that it is highly hardness and durable long time. Temperature controls adopts advanced automatic control system and the T mold adopts the multi- spots adjustment. They could cause the film thickness to be evener. The cooling system adopts the circulating water cool and it cooling effect is good. The rollout installment adopts the friction type of rollout and has the cutting edge installment and side material rollout element by round-trip. This causes the film which rollout to be neater.

III.Main Technical ParameterMode
SLW-600                      double-side sticky
Screw diameter                      55mm
L/D ratio                                 28:1
Extruder driving power            11kw
Auxiliary driving power           1.5kw
Electric heating                       20kw
Output                                 15-50kg/h
Film width                            600mm
Film thickness                  0.01-0.5mm
Rollout diameter                   400mm
Installed capacity                   35kw
