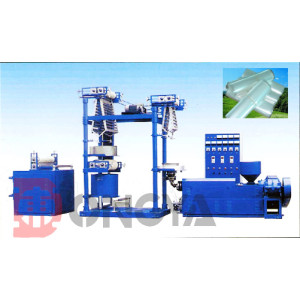

PVC Heat Shrink film blowing machine

PVC Heat Shrink film blowing machine

PVC Heat Shrink film blowing machine
PVC Heat Shrink film blowing machinePVC Heat Shrink film blowing machine
CategoriesFilm Blowing Machine
AlbumView larger image
BrandVinot
ModelPVC Heat Shrink film blowing machine
Unit PriceUS $ 25000 / piece
FOB portningo
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-05-27
Detail Information

I.USAGE

1.With reference to the world's most advanced information on the film blowing machine, combined with China's present situation, our machine is well-designed, and after many times’ new product trial, it has been proved to be a great success.

2.This machine is applicable to PVC membrane tube forming technology product Blown Shrink Film, film with good transparency, excellent gloss, high shrinkage, etc., which is popular in today's new packaging materials. It also has been widely used as the outer packages of food, beverages, tea, glass products, handicrafts, sanitary wares, cosmetics, electronic products, and so on.

3.This machine is horizontal blown type machine, which is excellent in film transparency and smooth surface, this kind film is good for printing and making label.

II.FEATURE

1.The barrel screw extrude and die is made of high-quality steel 38GrMoAIA, precisely formed by heat treatment, and it has the

features of high yield, good plasticization effect, and long operating life.

2. The cylinder is sub-chain heated, and the temperature is controlled electronically and automatically, constant temperature.

3. The use of VVVF drive motor enabled the drive smooth and control flexible. The adoption of four times traction made it possible to suit a wide range of the width of the blown film and improve yields.

4. The design of the machine is reasonable, less power consumption, and high output.

5.Also it can be used widely in various areas and the quality is reliable. Besides, the operation and maintenance is easy. So it is an economic choice for you.

III.Main Technical Parameter

Model

SJRM60*23/600

SJRM65*23/800

SJRM70*23/1000

Film Width

300-600mm

500-800mm

700-1000mm

Thickness

0.02-0.08mm

0.02-0.09mm

0.25-0.10mm

Output(Max)

40kg

50kg

60kg

Lateral Shrinkage Rate(Max)

45%-50%

45%-50%

45%-50%

Longitudinal Shrinkage Ratio

15%

15%

15%

Screw Diameter

60mm

65mm

70mm

Screw L/D Ratio

23:1

23:1

23:1

Main Motor Power

15kw

18.5kw

22kw

Total Power Of Heating

10kw

13kw

16kw

Power Of Traction and Winding

3kw

4kw

5.5kw

Auto Temperature Control Device

6 sets

7 sets

8 sets

Speed Of Traction and Winding

5-40m/min

5-40m/min

5-40m/min

Roll Surface Width Of Traction and Winding

700mm

900mm

1100mm

Gross Weight

2.2T

2.5T

3T

Total Power

                                                           380V, 3P, 50Hz

Volume(m)

5.5*2*3.2

6*2.2*3.6

6.5*2.5*4
