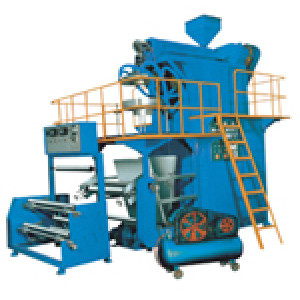

ROTATIONAL DIE PP FILM EXTRUSION MACHINE

ROTATIONAL DIE PP FILM EXTRUSION MACHINE
ROTATIONAL DIE PP FILM EXTRUSION MACHINE
CategoriesFilm Blowing Machine
AlbumView larger image
BrandVinot
ModelDY-55/60/70-FM600/700/800
Unit PriceUS $ 18000 / piece
FOB portningo and shanghai
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-01-26
Detail Information

. Feature:

1. Used for blowing PP, LDPE, HDPE and other thin film.

2. The cylinder and the screw of extruder are made of high quality alloy steel that process by nitrogen treatment.

3.Blowing type: bottom blowing method.

4.The rewinder adopts torque motor.

5.Widely used for packing food, cloth, textile, commodity, industrial products, etc.

Ⅱ. Main Technical Parameter

Model

DY-90-FM1000

Diameter of Screw

90mm

L/D Ration of Screw

28:1

Rotational Speed of Screw

10-100r/min

Power of Main Motor

25kw

Maximum Output

70kg/h

Max. Lay-out Width of Film

1000mm

Single-sided Thickness of Film

0.01-0.10mm

Gross power

50kw

Weight of Machine

4500kg

Overall Dimensions

5000×2200×4200mm
