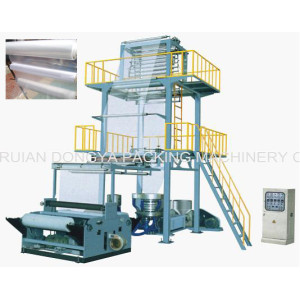

LDPE Mulch Blown Film Lines

LDPE Mulch Blown Film Lines

LDPE Mulch Blown Film Lines
LDPE Mulch Blown Film LinesLDPE Mulch Blown Film Lines
CategoriesFilm Blowing Machine
AlbumView larger image
BrandVinot
ModelSJ-75/85/100
Unit PriceUS $ 25000 / piece
FOB portningo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-27
Detail Information

Ⅰ.Feature:

1. The machine take the HDPE or LDPE, LLDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.

2. The finished plastic thin film is widely used for supermarket bags,garbage bags,various plastic package bags, shopping bags,cote film and compound thin film.

Ⅱ. Main Technical Parameter

Model

SJ70-1200

Suitable raw materials

HDPE,LDPE,LLDPE

Width of single film

1200mm

Film thickness(HD)

0.009-0.05 mm

Film thickness(LD)

0.025-0.11mm

Max extrusion output(HD)

75kg/h

Max extrusion output(LD)

80kg/h

Average power consume

45kw

Cover dimension

5.8×2.8×5m

Extruder

Screw diameter

70mm

Screw L/D

28:1

Screw material

SACM65/38CRMOLA

Cylinder material

SACM65/38CRMOLA

Cylinder cooling

370×3

Drving motor

18.5kw

Temperature

3

Type of DIE

Die size

150/180

Temperature control

2

Air ring

1

Center steady stick

1

Take-up unit

Roller width

1200mm

Height adujstable type

600mm

Take up speed

10-80m/min

Take up motor

1.1kw

Winding unit

Type

Surface friction/center rewinder

Widing motor

4kw

Widing speed

10-80kw

Parts for choice

1.lift traction; 2. rotary mould; 3, double cutting and rewinder; 4, surface treatment.
