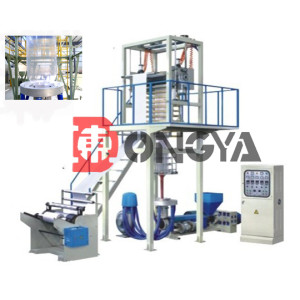

film blowing machine

film blowing machine

film blowing machine
CategoriesFilm Blowing Machine
AlbumView larger image
BrandVinot
Modelfilm blowing machine
FOB portningo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-05-26
Detail Information

1. The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.

2. The finished plastic thin film is widely used for supermarket bag,garbage bag,various plastic package bag, farmland film.cote film and compound thin film.

Ⅱ. Main Technical Parameter

MODEL

SJ50-600

Suitable raw material          HDPE       LDPE     LLDPE

Width of single flm

600mm

Film thickness (HD)

0.008-0.1mm

Film thickness (LD)

0.008-0.1mm

Max extrusion output(HD)

35kg/hr

Max. extrusion output (LD))

40 kg/hr

Average power-consume(kw)

10

Cover dimension (m)

4.2x1.8x3.6

EXTRUDER

Screw diameter(mm)

Φ50

Screw L/D

28:1

Screw material

SACM-65/38CRMOLA

Cylinder material

SACM-65/38CRMOLA

Cylinder cooling

370×3

Driving motor (kw)

11

Temperature control

3

TYPE OF DIE

Die size

50/80

TEMPERTURE CONTROL

2

Air ring

1

Center steady stick

1

TAKE-UPUNIT

ROLLER WIDTH

700

HEIGHT ADJUSTABLE TYPE

700

TAKE-UP SPEED(M/min)

10-80

TAKE-UP MOTOR(kw)

0.37

WINDING UNIT

TYPE                     SURFACE FRICTION/CENTER REWINDER

WINDING MOTOR(KW)

5

WINDING SPEED(M/min)

10-80

Parts for choice   1)  lift traction                2)  rotary mould

3)double cutting and rewinder   4)Surface Treatment
