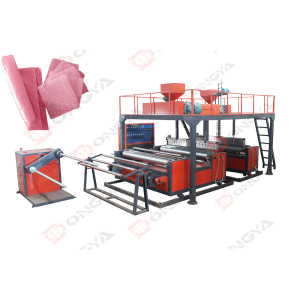

DYF-Series PE Air Bubble Film Co-extrusion Machine

DYF-Series PE Air Bubble Film Co-extrusion Machine

DYF-Series PE Air Bubble Film Co-extrusion Machine
DYF-Series PE Air Bubble Film Co-extrusion MachineDYF-Series PE Air Bubble Film Co-extrusion MachineDYF-Series PE Air Bubble Film Co-extrusion MachineDYF-Series PE Air Bubble Film Co-extrusion MachineDYF-Series PE Air Bubble Film Co-extrusion Machine
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDYF-Series PE Air Bubble Film Co-extrusion Machine
FOB portningo
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-05-27
Detail Information

1.Characteristic

This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.
Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.
2.Application:
The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.



Main Technical Parameter



Model

DYF-1000

Main and auxiliary extruder screw diameter

55mm/ 50mm

L/D ratio

28:1

Main and auxiliary extruder electrical power

11kw/ 5kw

Width of production

1000mm

Main bubble specification(arbitrary eligibility)

10×3.4mm/25×10mm/3.2×6mm/30×10mm

Output

40-80kg/h

Total installed capacity

75kw

Overall dimension

10000×7000×2500mm

Gross weight

5T



Model

DYF-1500

Main and auxiliary extruder screw diameter

75mm/ 65mm

L/D ratio

28:1

Main and auxiliary extruder electrical power

18.5kw/ 15kw

Width of production

1500mm

Main bubble specification(arbitrary eligibility)

10×3.4mm/25×10mm/6×3.2mm/30×10mm

Output

60-100kg/h

Total installed capacity

98kw

Overall dimension

10000×8000×2500mm

Gross weight

6.8T



Model

DYF-1600

Main and auxiliary extruder screw diameter

70mm/ 55mm

L/D ratio

28:1

Main and auxiliary extruder electrical power

18.5kw/ 15kw

Width of production

1600mm

Main bubble specification(arbitrary eligibility)

10×3.4mm/25×10mm/6×3.2mm/30×10mm

Output

60-100kg/h

Total installed capacity

98kw

Overall dimension

10000×8000×2500mm

Gross weight

6.8T
