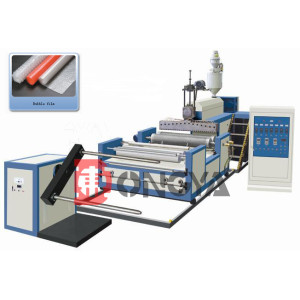

PE Air Bubble Film Machine

PE Air Bubble Film Machine

PE Air Bubble Film Machine
PE Air Bubble Film MachinePE Air Bubble Film MachinePE Air Bubble Film Machine
CategoriesPE air bubble film machine
AlbumView larger image
BrandVinot
ModelDY-1500
Unit PriceUS $ 22000 / piece
FOB portningbo
Terms of PaymentL/C, T/T, Western Union
Download DOC
Update Time2018-08-18
Detail Information

Ⅰ.Feature

This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession. Designs science, practical. Rational  in structure of the machine.

Ⅱ.Characteristic

This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

Ⅲ.Application

The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

Ⅳ.Main Technical Parameter

Model

DY-1500

Main and auxiliary extruder screw diameter

Φ75mm

L/D

28:1

Main and auxiliary extruder electrical power

18.5KW

Width of production

1500 mm

Main bubble specification

10×3.4mm 6×3.2mm 25×10mm 30×10mm

Output

30-80kg/h

Total installed capacity

65kw

Overall dimension

7500mm×2800mm×2500mm

Gross weight

5T
